Phoenix Air 16x20 Curing Oven
Note: It is recommended to turn on the air purifier ONLY while the oven timer is running. Leaving the air purifier on for prolonged periods of time may increase the overall temperature of the oven beyond the recommended curing temperature.
The Phoenix Air 16x20 Curing Oven is perfect for curing large film sizes, such as 13" x 19", 14" x 16", 16" x 20", and more! This oven comes with a purifier unit built-in to ensure the safety of your production space. It has a digital control unit that is easy to set and allows precise settings of temperature and time for consistent results. A fusing process is started at the touch of a button. After the set time has elapsed, an acoustic signal sounds alerting you to remove the transfer film.
Note: Unlike the previous Phoenix 16x20 Curing Oven, the Phoenix Air 16x20 oven uses an open-top/platform, rather than a tray, to cure films. See the Phoenix A3+ Curing Oven and A2 Curing Oven for similar heating methods.

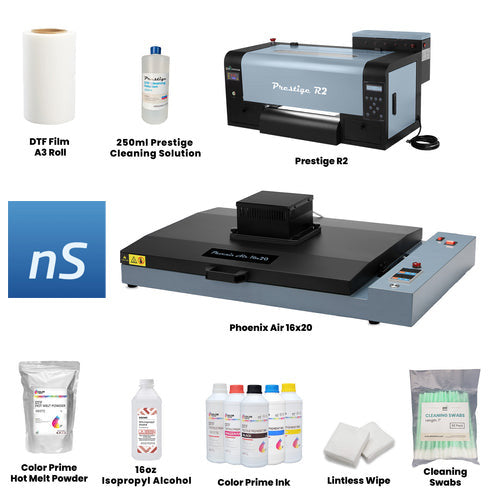

Phoenix Air 16x20 Curing Oven can be bundled with the Prestige A3+R DTF Printer.
Includes:
- Handles come unassembled
- Power cord
- Training Video
- 1-year warranty
- Lifetime Tech Support*
- *Only for active customers who have purchased DTF inks or supplies within the last 2 months
Features:
- Cure Transfers within a minute at 230~248°F
- Bottom Heating Element Rather than Top
- Self Contained Purification system
- Replace Filter 1~3 months depending on usage
Benefits:
- Easy to use
- Built-in purifier - saves space & money
Specifications:
- Voltage: 110V
- Power: 0.88KW
- Temperature Range: 0-150°C / 300°F
- Machine Size: 23"L x 12"W x 7"H
- Packaging Size: 25" x 16" x 10"
- Product Weight: 22 lbs
- Packaging Weight: 26 lbs
DigiRIP RIP Software
The DigiRIP RIP Software is the ultimate choice for direct to film printmakers. With a powerful suite of features, it stands out amongst its peers for its convenience and maximum efficiency. Enjoy a single Direct to Film software package and discover the power of DigiRIP RIP Software today.
- DigiRIP - for printers 16" or smaller
- DigiRIP Pro - for printers 17" or wider
Software Trial Version (15 Day) - Compatible with Windows only
Warm Peel DTF Film Rolls
Check out this guide on making your own costumes using this DTF film!
Features:
- High Ink Loading Layer: You can lay down more color/white to create rich-colored decorated DTF prints.
- Warm Peel: Peel off the film without a long wait after the first press.
- Single Side Matte: Easily distinguish the print side.
Compatible with:
- Any DTF printer on the market - **Recommended use with a roll printer**
- Looking for DTF film sheets instead? Go here.
Instructions:
- Print the image onto the matte side of the film in mirror mode. (CMYKWhite Ink)
- Apply hot melt powder evenly and remove the excess powder. Use a Seismo Shaker unit - like the Seismo S20 - to apply powder with ease!
- Hover with a heat press to bake the hot melt powder (340°F, 5min). Or use a curing oven (300-315°F, 1min).
- Transfer the image by heat press at 330°F for 15sec with medium pressure.
- After the first press, Option 1: Wait for 4-6 seconds and remove the film gently Option 2: Rub the top surface with a cloth to remove some heat and peel off the film gently
- Heat press again at 330°F 5-10sec with medium pressure to enhance a softer hand feel.
NOTE: Film A3 and A3+ Sheets and A3+ (13") Rolls have returned to their normal pricing, after a temporary price decrease.
Color Max DTF Ink
Please refer to these instructions on how to switch your machines from ink to Color Max Ink.
Features:
- Engineered for DTF printing
- Even and consistent texture without any loss in color vibrancy
- High color density and wide color gamut
- Pairs well with DTF Powder and DTF Film
Benefits:
- Consistent and professional print quality
- Tailor-made for reliable DTF printing results
Specifications:
- Size available - 1kg
- Colors available - CMYKW
- Shelf Life (from Manufacture Date)
- CMYK - 1 Year
- White - 6 Months
- Color Max DTF Ink MSDS_Cyan
- Color Max DTF Ink MSDS_Magenta
- Color Max DTF Ink MSDS_Yellow
- Color Max DTF Ink MSDS_Black
- Color Max DTF Ink MSDS_White
Hot Melt Powder for Direct-to-Film
Hot Melt Powder Material Safety Data Sheet
Formulated for use during DTG Transfer (DTF), adhesive powder is a crucial part of any DTF printing pipeline. Cover your DTG Transfer media with this powder to allow for optimal press. Use for 100% cotton, polyester, nylon, and more!
Features:
- After baking the powder, solid white for more vibrant colors
- Even and regular particles for quality graphics and good adherence
- Finely coated film means no pinholes!
Sizes:
Instructions (for use with Warm Peel film):
- Print the image onto the matte side of the film in mirror mode. (CMYKWhite Ink)
- Apply hot melt powder evenly and remove the excess powder. Use a Seismo Shaker unit - like the Seismo S20 - to apply powder with ease!
- Hover with a heat press to bake the hot melt powder (340°F, 5min). Or use a curing oven (300-315 °F, 1min).
- Transfer the image by heat press at 330°F for 15sec with medium pressure.
- After the first press, Option 1: Wait for 4-6 seconds and remove the film gently Option 2: Rub the top surface with a cloth to remove some heat and peel off the film gently
- Heat press again at 330°F 5-10sec with medium pressure to enhance softer hand feel.
*This product has no affiliation with Epson and is not endorsed by Epson.
*Settings and directions to print DTF with your F2000/2100 using Garment Creator*
- The basic concept for DTF is to print CMYK first then WHITE on top of it. ALWAYS MIRROR YOUR IMAGE FIRST!
- Most of you will be printing onto standard A3 and A4 sheets. Utilize every inch of space as you can to save on time and cost of materials. We call that gang sheeting. One benefit of GC is that it allows multiple images to be uploaded at the same time for printing. Those who order Plastisol Transfers will already know this. The two most common platens I use are 10 x 12 (A2) and 16 x 20 (A3). I place the sheet towards the top middle as a guide and measure how much empty space I have on the sides and bottom because the sheets will be smaller than your platen. I use tape to hold in at least 2 corners to prevent the sheet from shifting while printing.
- Using GC for DTF is very much the same as with DTG. The only difference is you are reversing the cmyk/white color process and mirroring your image.
- If your image has black in it then click on Black Garment. That will prevent GC from printing black unnecessarily.
- For all other colors including white, use (Dark Color).
- After selecting the proper color choice, you need to tinker with your color and white levels. For me personally I use level 2 for color and level 1 for white. I leave ink density to zero. And make sure you leave enough time in between passes in Pause between Passes (sec). This is very important. I like to choose 30-60 seconds
- Under White Management it is very important to check “OFF” first before you print your CMYK pass. This will allow your color layer to go down first.
- After your color pass is done then you go back to white management and click “ON”. Be sure you have enough seconds in your “Pause between passes (sec)” or else your printer will print another CMYK pass right after your white pass. YOU DO NOT WANT THAT! So you MUST manually press cancel on your printer before it does so.
Unfortunately, Garment Creator was not designed for DTF so it is necessary to turn white on and off for every print you do.
WARNING
NOTE
- DTF (Direct To Film) products works with almost all types of fabrics including 100% polyester with good quality results!
- Ecofreen hot-melt adhesive powder has excellent bonding and flexibility properties with DTF inks.
- The designed fabrics or printed shirts have a good wash characteristics.
- The fabric has very slight hand feel touch.
- The process is much faster than Vinyl printing (Vinyl Printer).
Prestige DTF Printer Cleaning Solution
NOTE: Color may vary
Prestige DTF Printer Cleaning Solution is suitable for running maintenance on DTG and DTF printing machines, including the Prestige A3+ Desktop DTF Printer and more! Using this solution regularly will extend the life of your printer.
Isopropyl Alcohol 16oz
99% Isopropyl alcohol can clean your water-based digital inks and it can remove unwanted ink splashes without scratches, unlike regular alcohol.
Use this ONLY on Printhead Guards, Encoder Strip, Encoder Wheels, and Platens or areas where unwanted ink splashes on metals/ plastic. Please note this may change/damage certain paints on metal or plastic. Use with care.
*Please contact us if you are not sure whether this product would be a good solution.
Use this product with our lint-free wipe.
Do not use this product on printheads, capping station, wiper blade, and any other areas not specified above. Please note that this product can damage your parts if used improperly. It is also not intended for use on the skin.
Wash face, hands, and any exposed skin thoroughly after handling the product.
Do not insert this into the tube/ lines.
When using this product do not eat, drink or smoke. Please wear protective gloves/protective clothing/eye protection/face protection.
Lint Free Wipes 4" x 4" - 30 Sheets
Ultra soft, non-abrasive, lint-free wipes are designed for sensitive surfaces such as printhead and encoder strip.
They are 99.999% pure and guaranteed safe for cleaning printhead surface, encoder strip and capping station.
Great for printhead overnight soaking / locking.
7" Cleaning Swabs - 50 Each
Cleaning Swabs to use alongside printers.
These Foam Cleaning Swabs are perfect for detailed cleaning on various parts of 's printers. Available in packs of 50 swabs each.
Features
- Foam Head
- Pairs well with all printers
Benefits
- Narrow form allows for detailed cleaning of small parts/areas
Specifications
- Swab Material: Foam
- Swab Length: 7 inches
- Quantity: 50 swabs in each pack
