Epson SureColor F3070 Direct-to-Garment Printer
The Epson F3070 is the first Epson industrial direct-to-garment (DTG) printer. It is a breakthrough in productivity and cost of ownership with rugged reliability. The SureColor F3070 provides savings in high production print shop environments. The bulk ink system delivers low cost ink pricing for high volume printers.
Available on a select basis
Redefining the Future of Garment Printing
-
Standard Features
- Dual (2) advanced PrecisionCore Printheads
- Bulk Ink System
- Epson UltraChomre DG Inks are RoHS compliant
- Automatic Printhead Adjustment
- Fast Loading Platen for More Productivity
- Intuitive, Easy-to-Learn Workflow
- Seamlessly Scaleability
Optional Features
- Epson F2100 Platens
- Large, Medium, & Small Hanger Platens
- Large, Medium, & Small Replacement Fabric Grip Pads
- 14" x 16" Grooved Polo & Zip-Hoodies Platen
- Epson DTG Pretreat Solution, Epson Polyester DTG Pretreat Solution,Lawson Epson Pretreatment Solutions
- Head Cleaning Set
- Maintenance Liquid - 1.5 Liter
- Cleaning Liquid - 1.5 Liter
- Garment Sensor Cover
- Relacement Flush Pad
- Replacement Head Cap
-
-
Print Printing Technology: Dual advanced PrecisionCore microTFP 10-channel, drop-on-demand,
inkjet printhead with ink-repelling coating technologyMinimum Ink Droplet Size: Variable Droplet Technology Maximum Print Resolution: 1200 x 1200 dpi Nozzle Configuration: 8,000 White ink print nozzles; 6,400 color ink print nozzles Ink Ink Type: UltraChrome DG Ink Palette: Cyan, Magenta, Yellow, Black, White Ink Configuration: 5-color: C, M, Y, K, W General Operating Systems: Windows® 10 and 8.1, macOS 10.12 (Sierra) or later System Requirements: Garment Creator Software Minimum PC Requirements: Multicore processor, 2GB RAM, 32GB Free Storage
Recommended PC Specifications: Intel Core i7 8th generation processor, 16GB RAM, 32GB free SSD storageTemperature: Operating: 59° to 95°F (15° to 35°C)
Operating (recommended): 59° to 77°F (15° to 25°C)Humidity: Operating: 20 – 80% (no condensation)
Operating (recommended): 40 – 60% (no condensation)Eco Features: Oeko-Tex ECOPASSPORT certified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport PartnerEstimated Overall Dimensions 53"(H) X 68"(W) X 72"(D) Ink Supply System Ink Supply Fill Volume: 1,500 mL each pack Ink Shelf Life: 2 years from printed production date Printer is designed for use
with Epson ink packs only, not third-party ink systems*.Garment Media Handling Thickness: Up to 29.5 mm Printer Details Printer Language: Epson ESC/P® raster Interfaces: Hi-Speed USB 3.0 (1 port)
1000Base-T Ethernet (1 port)Power Rated Voltage: AC 100 – 120 V; 200 – 240 V Rated Frequency: 50/60 Hz Rated Current: 8.2 A at 100 – 120 V, 4.1 A at 200 – 240 V Power Consumption: Printing: Approx. 168 W or less
Sleep Mode: Approx 20 W
Power Off: Approx 1.0 WPower Requirements: Printer: Requires two outlets
-
-
-
Epson SureColor F3070 with Black Shirt
The Epson SureColor F3070 is an industrial DTG printer, printing black shirts with white ink in approximately 45 seconds
-
Epson SureColor F3070 with White Shirt
The SureColor Epson F3070 Industrial DTG printer can print CMYK in approximately 15 seconds.
-
SureColor F3070 Industrial DTG Control Panel
A close up of the Epson 3070 LCD color control panel.
-
Epson UltraChrome DG Bulk DTG Ink
The Epson F3070 features DTG bulk ink in the standard CMYK + White configuration. Cleaning solution is automatically cycled through the machine periodically.
-

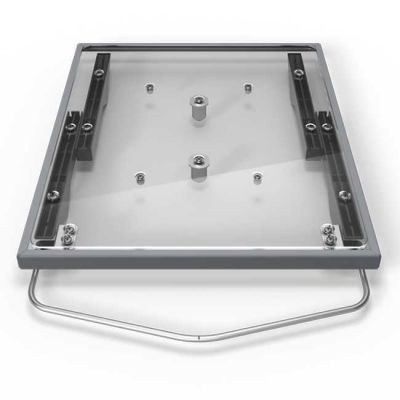

Close Up of the Epson DTG Hanger Grip Platen
A close up of the Epson Hanger Platen. The Hanger Platens dedicate extra room to tuck oversized garments and extra fabric out of the way.
-
Epson UltraChome DG Bulk Ink Holder
This is the storage unit on the Epson 3070 designed to hold the DTG bulk ink.
-
SureColor F3070 Dimensions
-
Epson SureColor F3070 Industrial Direct To Garment (DTG) Printer is Epson's first DTG printer to leverage dual printhead technology and a bulk ink pack system, providing remarkably low ink cost and minimized waste. With two (2) new Precision Core 10-channel 2.6" Printheads technology, get industrial quality prints at the best speeds. These high quality Epson print heads deliver professional quality, one-pass printing at production speeds that industrial printers require.
The Epson F3070 Industrial DTG printer is the first to feature an Epson Bulk Ink System. Epson UltraChrome® DG inks are durable, vibrant and safe, with outstanding color performance, plus equal pricing for color and White inks.
The first ever automatic printhead height adjustment automatically adjusted the platen high for garment thickness and texture for optimal print quality without user interference. Easily switch between thin t-shirts and thick sweatshirts with no downtime or operator interference. The F3070 is ideal for printing on garments that are a variety of fabric types including cotton, polyester, linen, and rayon. This helps it meet the market's demand for unique clothing.
Built for reliability, the SureColor F3070 features an ultra-durable linear rail system and CNC milled print carriage, designed for years of production. This SureColor F-3070 Industrial DTG printer features user serviceable parts, including printheads, and low maintenance requirements, ideal for high production print on-demand service providers, fulfilment houses and in-house print on-demand production.
What's in the box
SureColor F3070 Production Edition & Stand
SureColor F3070 Ink Supply System
Initial Consumables Pack
Why Buy an Epson F3070 Industrial DTG Printer
Impressive Garment Print Quality
High-Performance Garment Production
Exceptional Printer Reliability
Low Cost-of-Ownership
Model SCF3070PE
