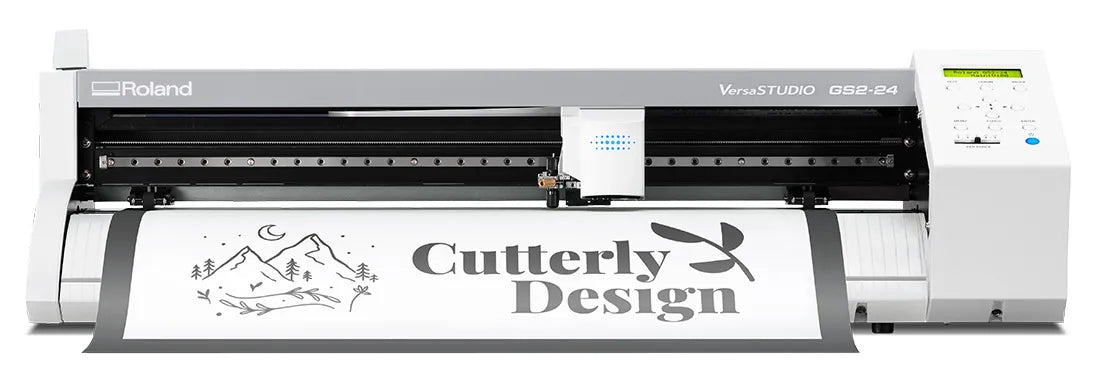

Name: Roland VersaSTUDIO GS2-24 Desktop Vinyl Cutter
Brand: Roland
SKU: 497-126-7-EA
Price: 1995.0 USD
Availability: InStock

The VersaSTUDIO GS2-24 desktop cutter inherits the cut quality, easy operation, and compact size of the GS-24, while also offering faster cutting speeds, greater cutting force, and a stylish new design. In addition, this affordable, next-generation device boasts both Ethernet and USB connectivity, Roland DG Connect interface capability, and a DHCP function for enhanced customer usability. Plus, when used in combination with a Roland DG printer, the GS2-24 benefits from the very latest VersaWorks software tools and features for unsurpassed ease of use, a smooth workflow, and maximum productivity.

These improvements, plus legendary Roland DG durability and reliability, make the GS2-24 ideal for a wide range of applications, including sign and graphics, decals and stickers, heat transfer apparel, general product decoration/personalization, and more. With its added features, increased versatility, and simple operation, the GS2-24 is a perfect choice for smaller sign shops, garment decorators, in-house marketing/design departments, in-plants, prosumers or crafters, and small office/home office use.

Download the VersaSTUDIO GS2-24 Datasheet (PDF)

Maximum cut speeds are up to 170% faster compared to the GS-24
Maximum cutting pressure is up to 140% greater compared to the GS-24
Includes GXS-24 stand at no additional cost
New DHCP: IP address is automatically assigned – no complicated settings required
Included CutSTUDIO software provides the tool for creating a wide range of applications
Compatible with Roland DG Connect

Great Return on Investment
Affordable and powerful, the GS2 helps you easily grow your graphics production business.

The Roland DG Legacy
You can feel confident investing in Roland DG's world-renowned quality and reliability.

Monitor Status Easily
Track the status of every cutting job instantly with a clear LED signal on the cutting carriage.

Cut Printed Sheets Accurately
Precise crop-mark detection lets you cut designs produced on your desktop printer.

Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.

Intuitive Software Included
CutStudio software helps you easily print and cut your designs in a simple and efficient workflow.

Works with Your Design Software
Easily send your designs to the cutter straight from Adobe® Illustrator® or CorelDRAW®.

Built to Suit Your Workflow
Featuring both Ethernet and USB ports, the GS2 can work with your set-up.

Drive system		Digital control servo motor
Cutting mechanism		Media-moving method
Acceptable material size	Width	1.97 in. - 27.5 in. (50 - 700 mm)
	Length	Roll material: no restriction Flat material: 3.94 in. (100 mm) or more
Maximum cutting area		22.9 in. (Width) × 984 in. (Length) (584 mm × 25,000 mm)
Cutter Blade		CAMM-1 series blade (ZEC-U5032 )
Cutting speed		0.39 - 33.4 in./s (10 - 850 mm/s)
Blade force		30 - 500 gf
Mechanical resolution		0.49 mil./step (0.0125 mm/step)
Software resolution		0.98 mil./step (0.025 mm/step)
Distance accuracy^*1		Error of less than ±0.2% of distance traveled or 3.94 mil. (0.1 mm), whichever is greater
Repeatability ^{1, 2}		3.9 mil (0.1 mm) or less
Alignment accuracy for cutting printed material ^{1, 3}		±39.4 mil. (±1 mm) or less for movement distance of 8.3 in. (210 mm) or less in material-feed direction and movement distance of 6.7 in. (170 mm) or less in width direction (Does not take influence of printer and material into account)
Connectivity		• Ethernet (automatic switching between 10BASE-T and 100BASE-TX) • USB 2.0 (FULL SPEED compliant)
Replot memory		2 MB (buffer size: 8 MB)
Command system		CAMM-GLⅢ
Power supply		Dedicated AC adapter Input: 100 - 240 Vac, 50/60 Hz Output: 24 Vdc 2.7 A
Rated current		1.0 A
Power consumption		Approx. 24 W
Acoustic noise level	During operation	70 dB (A) or less
	During standby	40 dB (A) or less
Outer dimensions		33.9 in. (Width) × 12.6 in. (Depth) × 9.3 in. (Height) (860 mm × 319 mm × 235 mm)
Weight		30 lb. (13.5 kg)
Environment	Temperature	41 to 104 °F (5 - 40 °C)
	Humidity	20 - 80 %RH (no condensation)
Included items		Cutter, Stand, Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals

*1 According to material and cutting conditions as specified by Roland DG Corporation.
*2 Excluding expansion/contraction of the media
• Length in sheet feed direction: Within 62.9 in. (1600 mm)
*3 According to measurement standards as specified by Roland DG Corporation.
• Software must be included Roland DG Corporation software.
• Assumes use of a laser or inkjet printer with a resolution of 720 dpi or greater.
• Excludes glossy and/or laminated material.
• Excludes effects of warped printing due to accuracy of printer or effects of expansion/contraction of material.
• May not be read correctly by the sensor depending on the printer ink (black) used.
