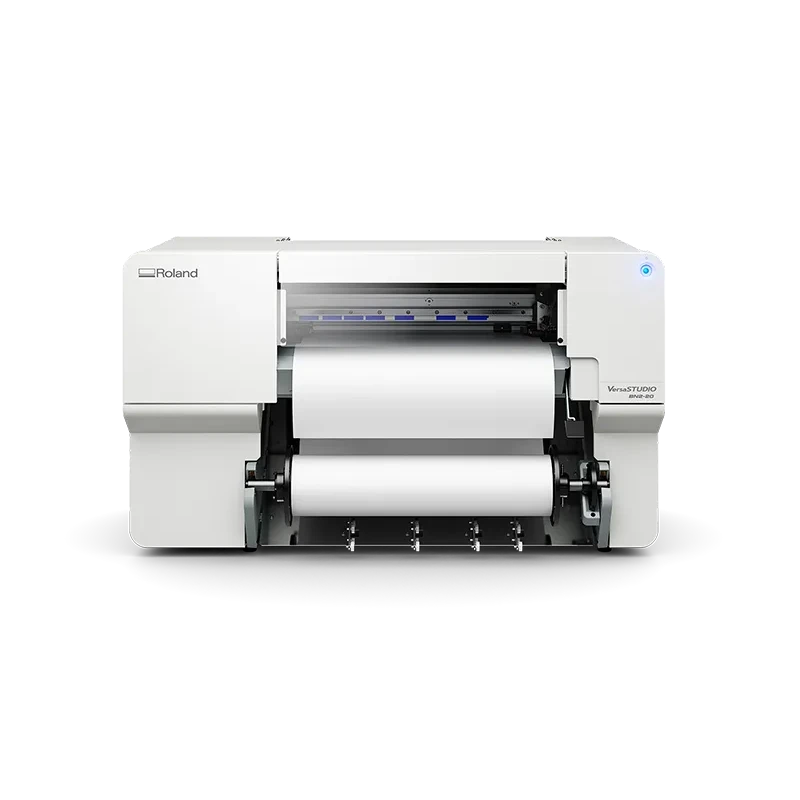

Name: VersaStudio BN2-20 Printer/Cutter
Brand: Roland
SKU: 497-125-111-EA
Price: 7295.0 USD
Availability: InStock

Your Sign, Graphics, And Apparel Business Starts Here!

Embark on the journey of establishing your own desktop-based business specializing in printing t-shirts, posters, stickers, and decals. With the VersaSTUDIO BN-20, a cutting-edge machine for graphic printing and cutting t-shirts, you can effortlessly produce top-notch graphics of remarkable quality, all while keeping your costs in check.

Easily the most versatile print devices in their class— print and cut on a huge range of vinyl, films, and media
In addition to traditional graphics, you can create heat transfer graphics for jerseys, hoodies, bags, and more
Legendary Roland DG machine reliability combines with exceptional image quality and color to give you the solution you need to succeed

The VersaStudio BN2-20 Printer/Cutter Offers The Flexibility You Need

The Roland VersaStudio BN2-20 Printer/Cutter provides all the essentials for embarking on a professional journey in print and cut graphics production. It features a 20" Max Media Width and 5-Color CMYK + White Ink Configuration. Perfect for Apparel, Decals and Labels, Small Signs and Posters, Art and Photography, and Printing on Dark, Clear and Metallic Media!

Print and cut graphics on a variety of media for a wide range of applications.
Print speeds over four times faster than the BN-20 (in standard mode)
Choice of BN2-20 (CMYK + White) or BN2-20A (CMYK only)
Integrated print/cut, plus new automatic sheet-cut feature
New compact design with built-in tool storage space
Front-loading ink and media systems
Eco-Sol MAX 2 inks deliver rich color and excellent detail.
Included FlexiDESIGNER VersaSTUDIO Edition design software, VersaWorks 6 RIP software, and Roland DG Connect app.

		BN2-20A	BN2-20
Printer Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)
	Thickness	Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm )
Printing/cutting width (*1)		Maximum 18.89 in. (480 mm)
Ink	Type	220-ml cartridge
Ink	Colors	Cyan, Magenta, Yellow, Black	Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)	Print heater set temperature:	86 to 95 °F (30 to 35 °C)
Media heating system (*3)	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C )
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation	Approx.185 W
Power consumption	Sleep mode	Approx.27W
Acoustic noise level	During operation	62 dB (A) or less
Acoustic noise level	During standby	60 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force.
The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment（Use in an operating environment within this range.)

bn2_spec_photo
